The PISONUS case

A case for your PISONUS, to print yourself.

A Raspberry Pi, a DAC board and a 4-inch touchscreen, in one case made for a home printer.

The PISONUS case from above: the PISONUS logo engraved in its lid, the player on its screen

01The print

Made for a home printer.

Outside
200 × 193 × 74 mm
Parts
Body, front, lid, and two display strips
Material
PETG
Printer
A 220 × 220 mm bed. No supports.
Print time
About 8–9 hours, 0.6 mm nozzle, 0.3 mm layers
Filament
About 470 g
Assembly
16 M3 heat-set inserts and M3 screws, all fixed from the inside
Inside
A Raspberry Pi with a DAC board on top
Front
A 4-inch touchscreen
Back
Two RCA outputs, power, and the Pi's ports
Sides
Vents

Only the front changes with the screen: the body and back are the same for every DAC board.

02Every side

From the front, and from behind.

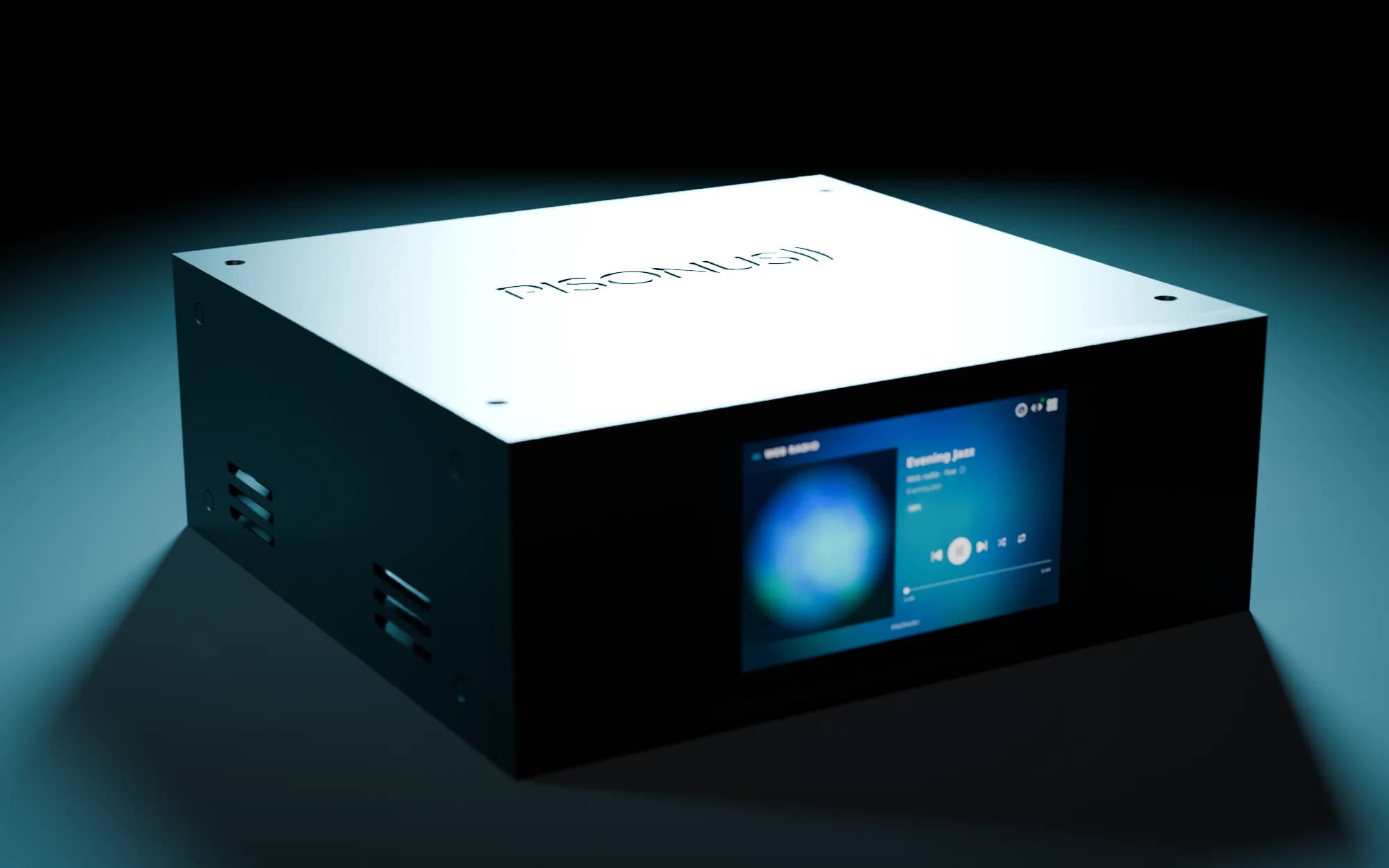

Front three-quarter view, the player on its screen
Front three-quarter view, the player on its screen

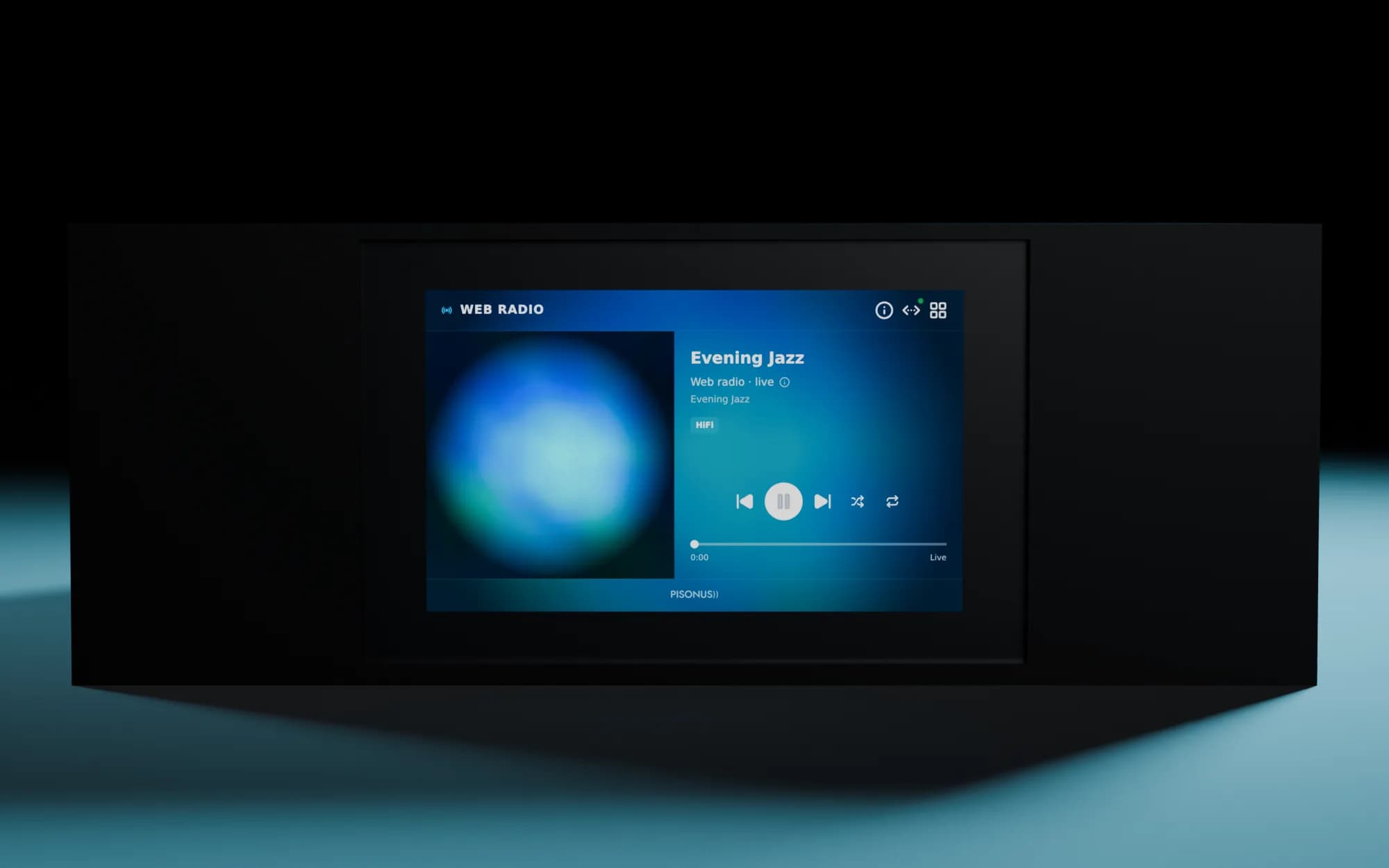

From the front: the 4-inch touchscreen
From the front: the 4-inch touchscreen

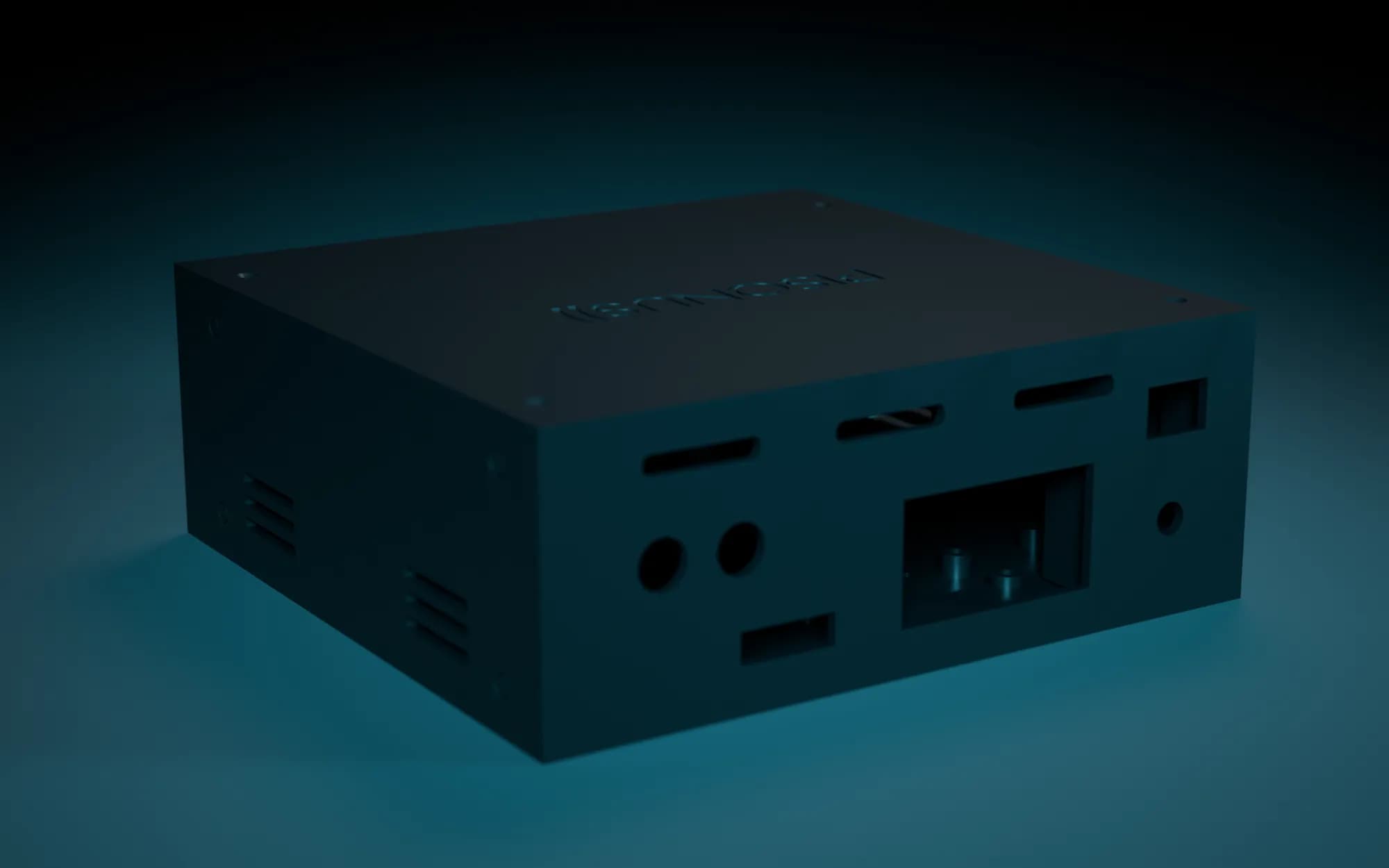

From the back: RCA outputs, power and the Pi's ports
From the back: RCA outputs, power and the Pi's ports

Renders made from the print files.

The print files

Coming soon
